| INVENTORY |
| Part Number |

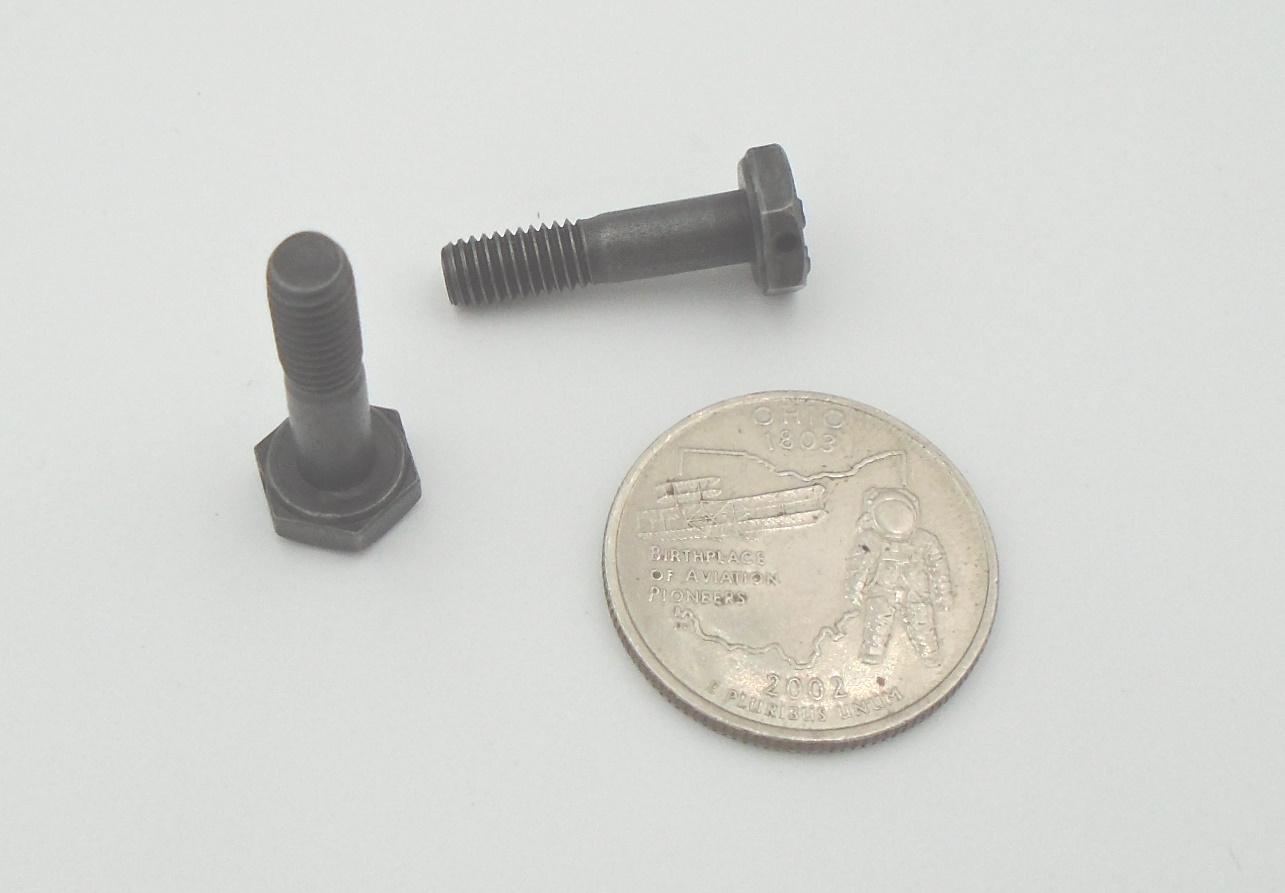

AN3CH6A |
| NSN Number |
5306-00-182-1855 |
| Stock |
49,190 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.0092 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
| SPECIFICATIONS |
| Diameter |
Length
+.031" / -.016" |
Grip
± .016" |
Thread Length |
Material |
| 0.189" - 0.186" |
0.781" |
0.375" |
0.406" |
Stainless Steel |
| Grade |
Finish |
Thread Specs |
Locking Mechanism |
| 431 |
Passivation per AMS2700 |
10-32 UNF-3A |
Drilled Head |
| Diameter |
0.189" - 0.186" |
Length
+.031" / -.016" |
0.781" |
Grip
± .016" |
0.375" |
| Thread Length |
0.406" |
| Material |
Stainless Steel |
| Grade |
431 |
| Finish |
Passivation per AMS2700 |
| Thread Specs |
10-32 UNF-3A |
| Locking Mechanism |
Drilled Head |
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
