MS21042L08 | NUT, HEXAGON SELF-LOCKING

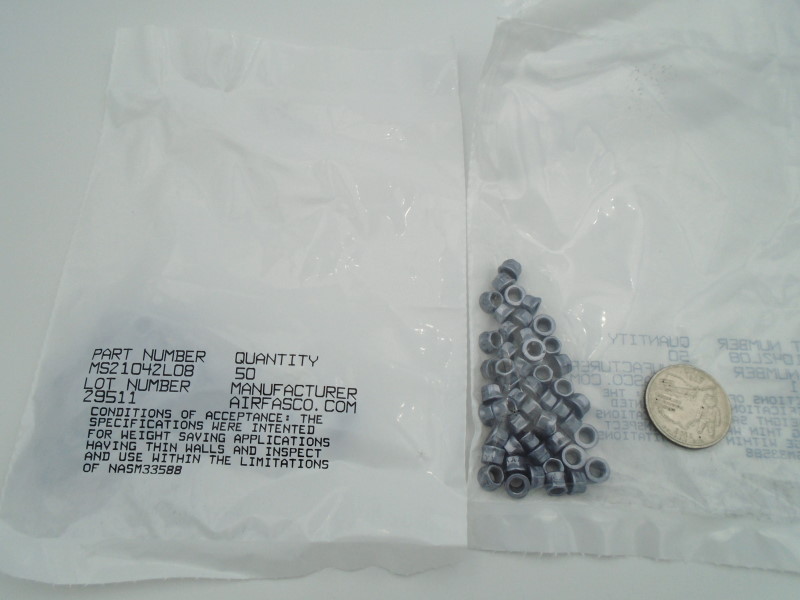

CONDITIONS OF ACCEPTANCE: THE SPECIFICATIONS WERE INTENTED FOR WEIGHT SAVING APPLICATIONS HAVING THIN WALLS AND INSPECT AND USE WITHIN THE LIMITATIONS OF NASM33588
| INVENTORY |
| Part Number |
MS21042L08 |
| NSN Number |
5310-00-807-1473 |
| Stock |
0 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
50 PER |

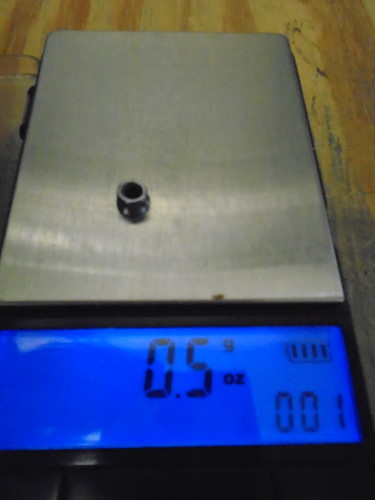

| REF PC Weight (LB) |
0.00110 |
TIME TO MANUFACTURE
INQUIRE
A new lot is currently in production. Please submit an RFQ.
| Retail Price |
| Min Order QTY |
50 |
| Price |
$ 0.5000 /
EA |
Please login or register to receive better pricing.
MAX. OUTER DIAMETER (MAX)
.290
MIN. BEARING SURFACE DIAMETER
.260
THREAD SPECIFICATIONS
.1640-32 UNJC-3B
MIN. AXIAL STRENGTH
2490 LBF
FINISH
DRY FILM MEET SALT SPRAY REQUIREMENT AMS-QQ-P-416, TYPE II
LOCKING MECHANISM
Self-Locking
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
