| INVENTORY |
| Part Number |

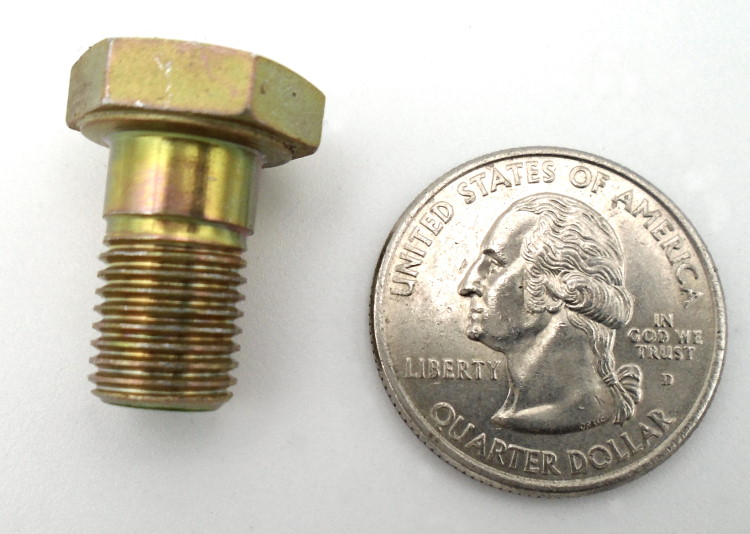

NAS6306-3 |
| NSN Number |
5306-01-046-3894 |
| Stock |
464 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.031 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.564
MIN. FLATS WIDTH (HEAD)
0.554
MIN. POINTS WIDTH (HEAD)
0.623
MAX. HEAD THICKNESS
0.203
MIN. HEAD THICKNESS
0.188
MIN. WASHER FACE DIAMETER
0.523
MAX. BODY DIAMETER
0.3745
MIN. BODY DIAMETER
0.3735
NOMINAL GRIP LENGTH
0.188
NOMINAL TOTAL LENGTH
0.642
MAX. MAJOR DIAMETER (THREADS)
0.3680
MIN. MAJOR DIAMETER (THREADS)
0.3640
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.3750-24 UNJF-3A
