NAS6604-44X | TENSION BOLT

INVENTORY
Part Number NAS6604-44X
Stock 21
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.439
MIN. FLATS WIDTH (HEAD)
0.429
MIN. POINTS WIDTH (HEAD)
0.480
MAX. HEAD THICKNESS
0.140
MIN. HEAD THICKNESS
0.125
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2651
MIN. BODY DIAMETER
0.2641
NOMINAL GRIP LENGTH
2.750
MAX. GRIP LENGTH
2.760
MIN. GRIP LENGTH
2.740
NOMINAL TOTAL LENGTH
3.175
MAX. TOTAL LENGTH
3.190
MIN. TOTAL LENGTH
3.160
MAX. MAJOR DIAMETER (THREADS)
0.244
MIN. MAJOR DIAMETER (THREADS)
0.241
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.2500-28 UNJF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

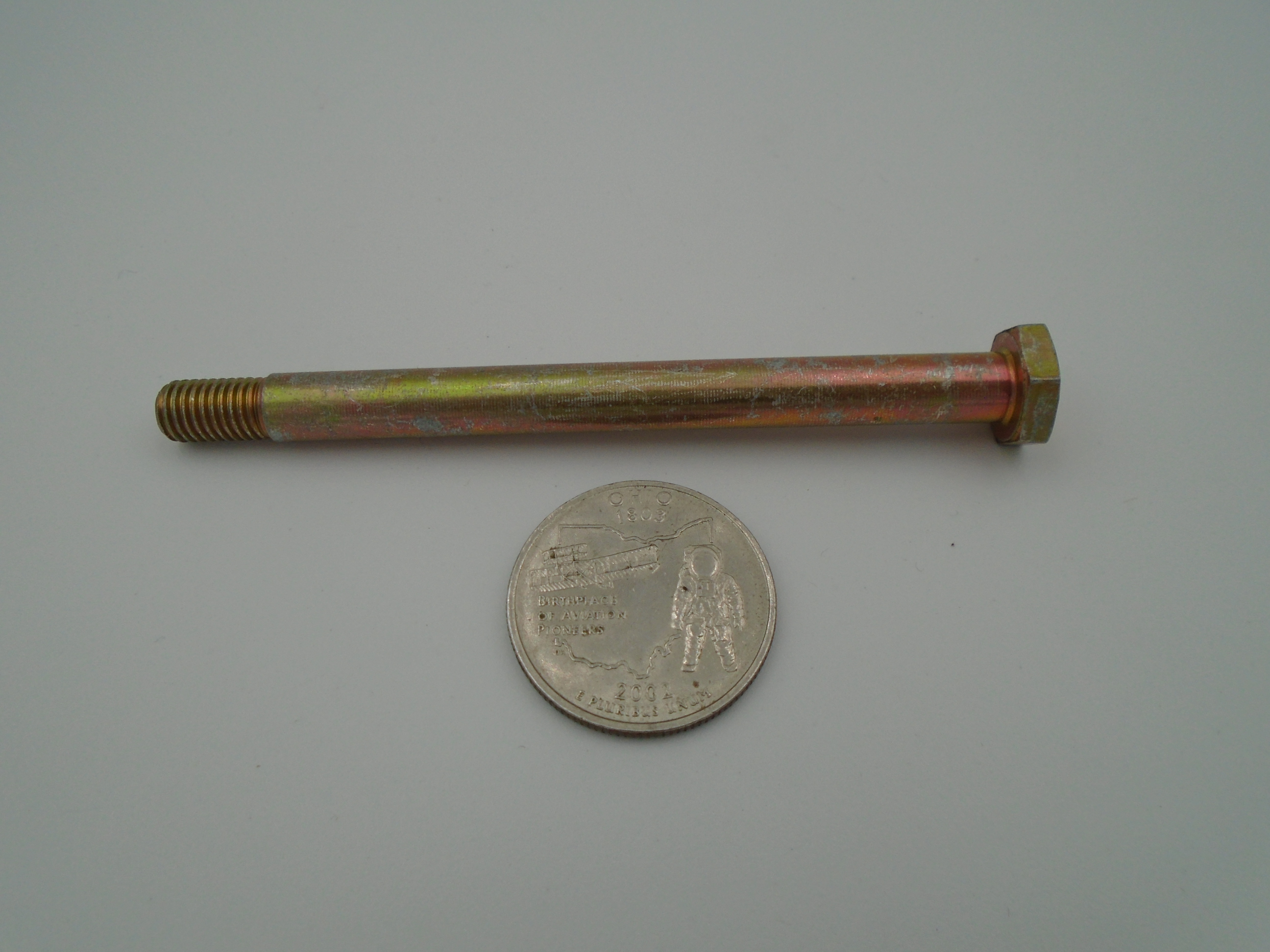

NAS6604-44X
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
